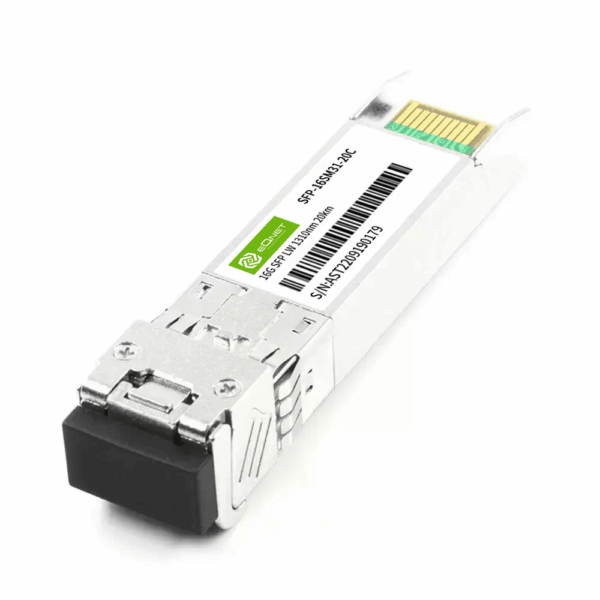

16G SFP
EQNET’s 16G FC SFP+ optical transceivers are widely used in SAN (Storage Area Networks), such as Fiber Channel switches, and in Fiber Channel HBA (Host Bus Adapters) servers. 16G FC SFP+ supports 14.025/8.5/4.25G Fibre Channel specifications. It complies with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev. 11.0. EQNET offers a full range of 16G FC product line, including 16G SW, 850nm, 100m over multi-mode fiber, and 16G LW 10km, 20km and EW 40KM over single-mode fiber. 16G FC SFP+ BIDI 10km and 16G FC CWDM DWDM 40KM ER are also supported.
| Form Factor | SFP+ |
|---|---|
| Data Rate | 14G/ps |
| Distance | 100M, 10KM, 20km, 40KM |
| Wavelength | 1310nm, 1550nm, 850nm, CWDM xxxxnm, DWDM CHxx, Tx 1270nm / Rx 1330nm, Tx 1330nm / Rx 1270nm |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC |
| Voltage | 3.3V |
| Cable Type | MMF, SMF |
| DDM | Yes |
| Transmitter Type | 1270nm DFB, 1310nm DFB, 1550nm EML, CWDM EML, DWDM EML, VCSEL 850nm |
| Receiver Type | PIN |
| TX Power | –5.0~-0.5dBm, -1.0~+3.0dBm, -7.8~-0.5dBm, .-3.0~+2.0dBm |
| Receiver Sensitivity | < -10.5dBm, < -12.0dBm, < -14.0dBm |
| Protocols | MSA Compliant |
| Warranty | 3 years |
