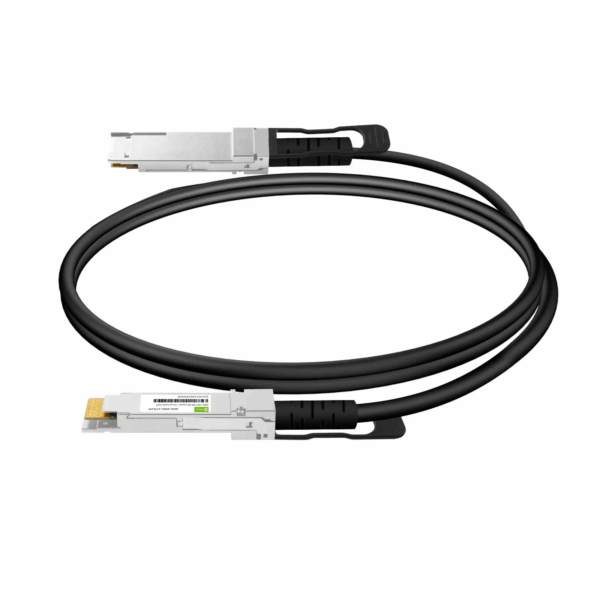

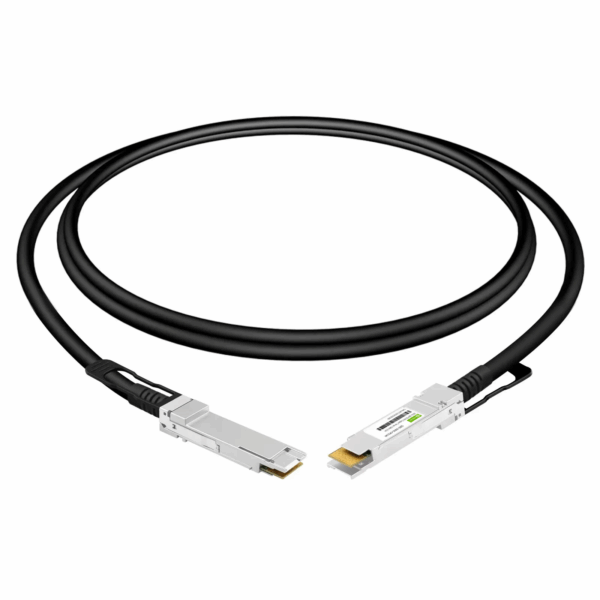

200G QSFP28-DD DAC
200G QSFP28-DD(Double-Density) DAC cables are passive Direct Attach Copper (DAC) cables as high speed, cost-effective alternatives to fiber optics in 200G Ethernet applications.
The 200G QSFP-DD DAC cable contains 16 high-speed copper pairs, each operating at data rates of up to 25Gb/s of NRZ signals. It is compliant with QSFP28 MSA and supports the SFF-8636 compliant I2C management interface. EQNET’s 200G QSFP-DD high performance passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at low cost and low power requirement in the high-performance computing (HPC), data center and storage networks. The 200G QSFP-DD direct attach cables length range from 0.5 meter to 5 meters.
| Cable Type | DAC |
|---|---|
| Connector Type | QSFP-DD to QSFP-DD |
| Data Rate | 200G/ps |
| Length | 0.5m, 1.5m, 1m, 2.5m, 2m, 3m, 5m |
| AWG | 26, 30 |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC (OFNR) |
| Voltage | 3.3V |
| Passive/Active | Passive |
| Minimum Bend Radius | 35mm, 50mm |
| Protocols | 200G Ethernet |
