200G QSFP56
EQNET’s 200G QSFP56 transceivers of are developed for the challenges of achieving high-speed and low-cost data centers.
EQNET’s 200G QSFP56 transceivers are developed for the challenges of achieving high-speed and low-cost data centers.

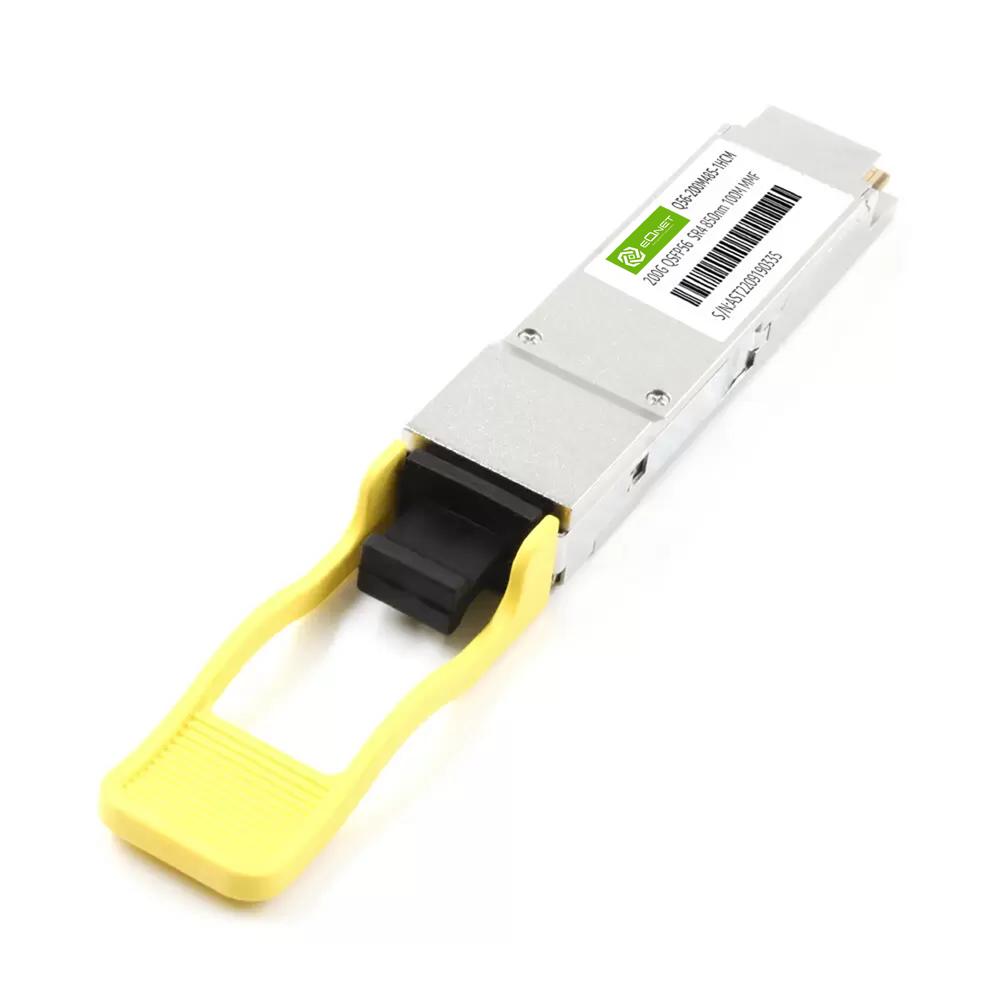

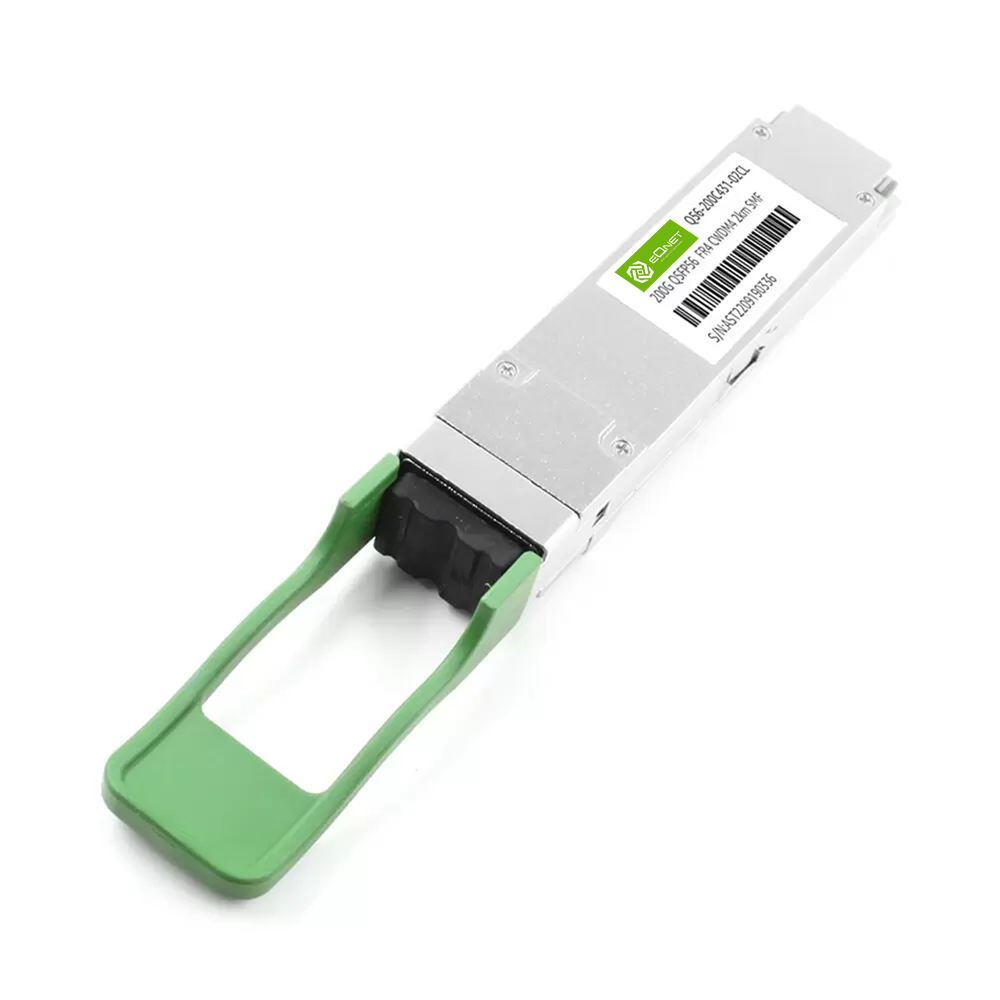

They use 4x50Gb/s PAM4 channels to achieve 200GE connectivity suitable for switch interconnects. This transceiver consists of a transmitter/receiver unit operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm or 4 channels 850nm wavelength. The electrical interface of the module is compliant with IEEE 802.3cd, IEEE 802.3bs, and QSFP56 MSA. Our 200G QSFP56 product portfolio includes SR4 and FR4.
| Form Factor | QSFP56 |
|---|---|
| Data Rate | 200G |
| Distance | 100M, 2KM |
| Wavelength | 850nm, CWDM4 |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC, MPO-12 |
| Voltage | 3.3V |
| Cable Type | MMF, SMF |
| DDM | Yes |
| Transmitter Type | 850nm VCSEL, EML CWDM4 |
| Receiver Type | PIN |
| TX Power | -4.2~+4.7dBm, -6.5~+4.0dBm |
| Receiver Sensitivity | < -8.2dBm, < -8.4dBm |
| Protocols | QSFP56 MSA |
| Warranty | 3 years |
