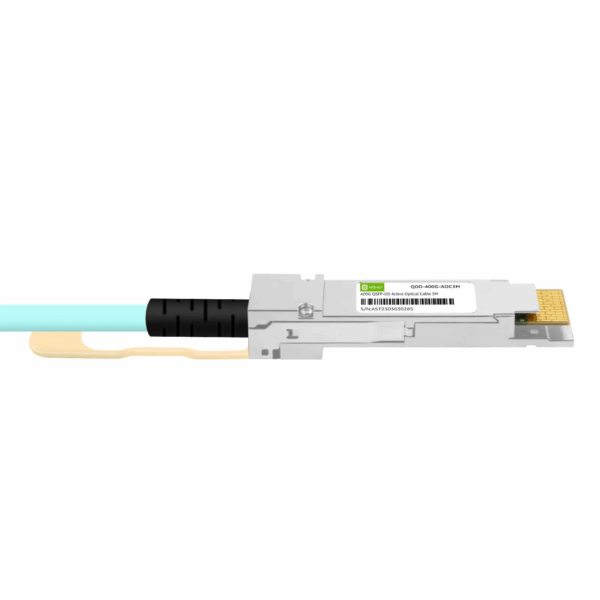

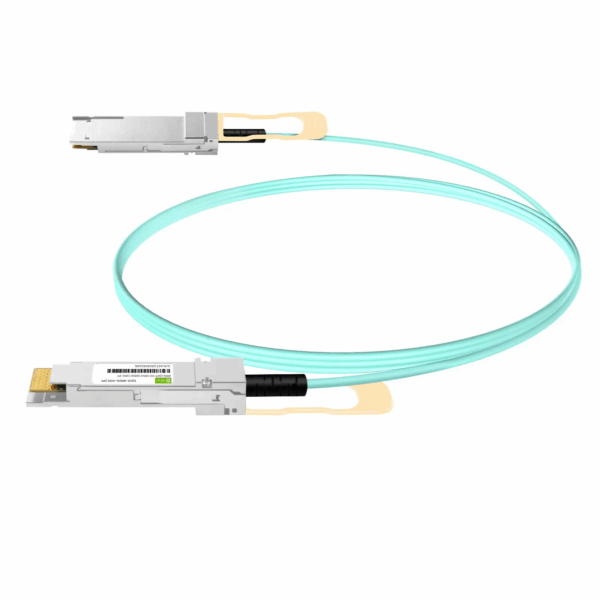

400G QSFP56-DD AOC
The 400G QSFP-DD AOC (active optical cable) is a 400 Gb/s parallel active optical cable, which transmits parallel 8×50 Gb/s PAM4 signals over multi-mode fiber (MMF) cables up to 100m. It is compliant with QSFP-DD MSA and the CMIS 4.0. The 400G QSFP56-DD AOC cables supports eight electrical interface lanes, each of which operate in the data rate of 53.125G, with an overall aggregate bandwidth up to 425Gb/s. These modules of cables are designed to operate over multi-mode fiber systems using a nominal wavelength of 850nm.The electrical interface uses a 76 contact edge type connector. EQNET provide high performance, high density and low power 400G QSFP-DD active optical cables (AOC), which is suitable for short-range interconnection in data center, high- performance computing networks, enterprise core and distribution layers, and service provider applications.
| Cable Type | AOC |
|---|---|
| Connector Type | QSFP-DD to QSFP-DD |
| Data Rate | 400G/ps |
| Length | 10m, 15m, 1m, 20m, 3m, 5m, 7m, xxm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | OFNP |
| Voltage | 3.3V |
| Passive/Active | Active |
| Minimum Bend Radius | 7.5mm |
| Protocols | QSFP-DD Rev 4.0 and IEEE 802.3bs |
| Fiber Cable | OM3 |
