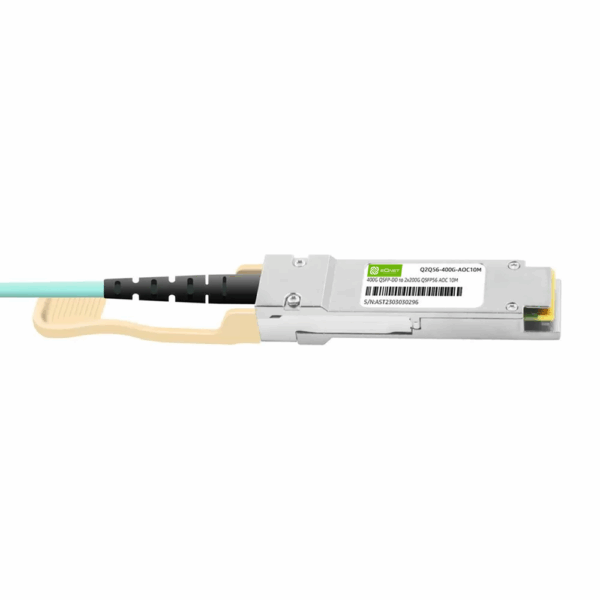

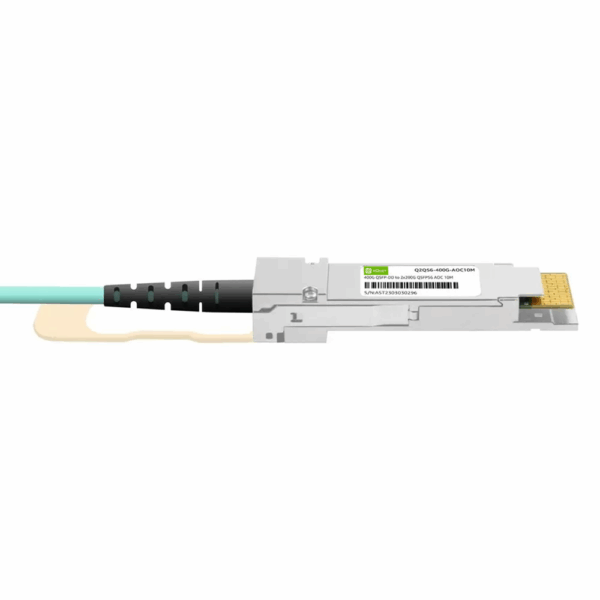

400G QSFP56-DD Breakout AOC

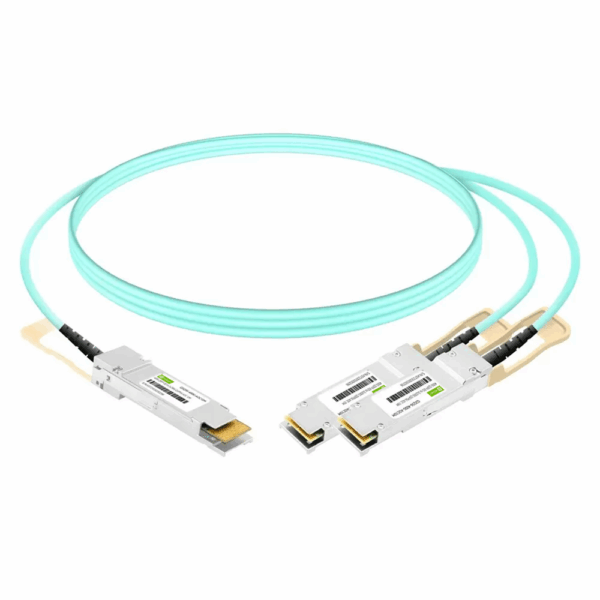

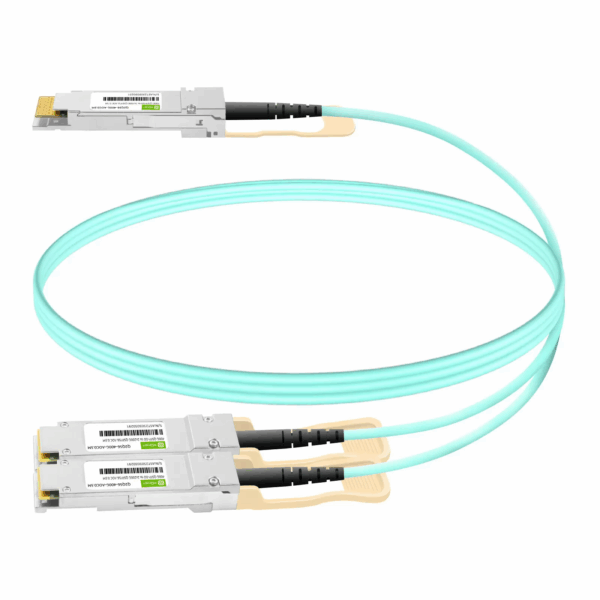

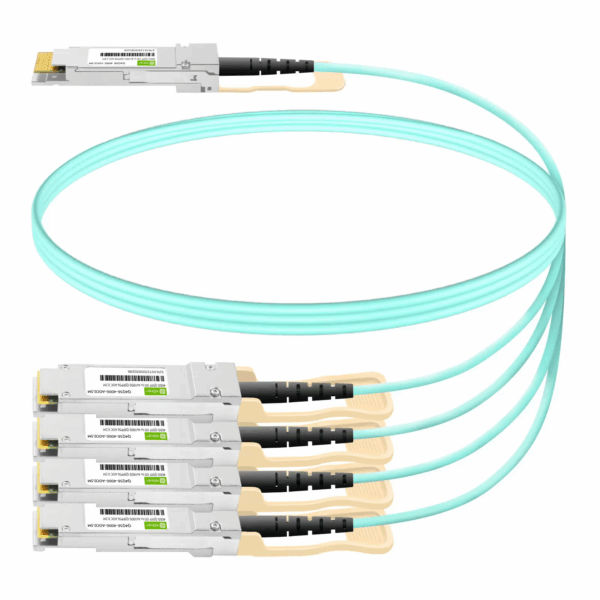

EQNET’s 400G QSFP-DD Breakout AOC (Active Optical Cable) assemblies include 400G QSFP-DD to 2x 200G QSFP56 breakout AOC and 400G QSFP-DD to 4x 100G QSFP56 breakout AOC. The module integrates eight parallel lanes on 400G end and fan-out to four parallel lanes on each 200G end or two parallel lanes on each 100G end. Each lane operate 53.125Gb/ps PAM4 modulation signal. These 400G parallel breakout Active Optical Cable (AOC) assemblies transmit parallel 8x 50G PAM4 signals over multi-mode fiber (MMF) cables up to 100m. Compliant with QSFP-DD/SFP MSA and CMIS 4.0.they are designed with high performance, high density and low power, which are suitable for short range interconnection for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
| Cable Type | AOC |
|---|---|
| Connector Type | QSFP-DD to QSFP-DD |
| Data Rate | 400G/ps |
| Length | 10m, 15m, 1m, 3m, 5m, 7m, xxm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | OFNP |
| Passive/Active | Active |
| Minimum Bend Radius | 30mm |
| Protocols | IEEE 802.3bs, IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA |
| Fiber Cable | OM3 |
