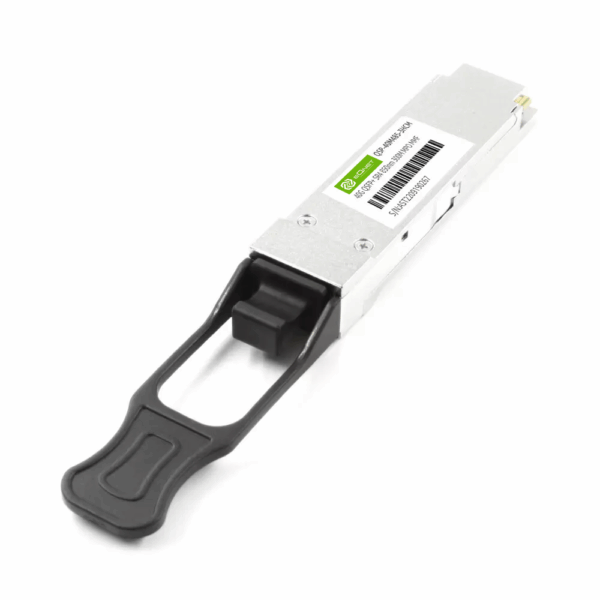

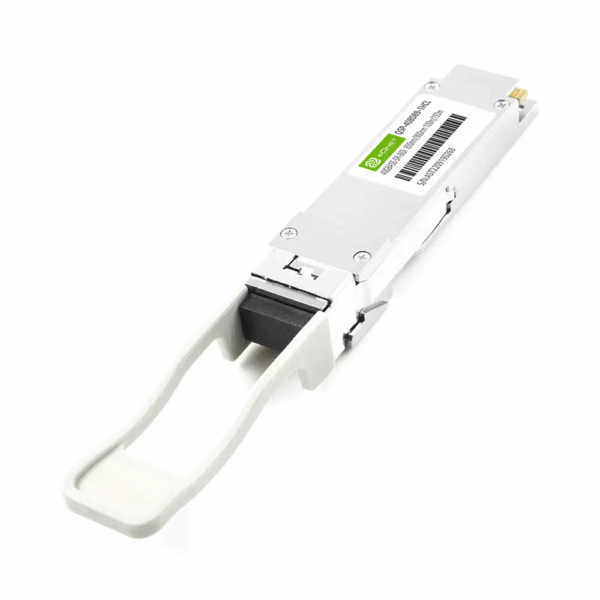

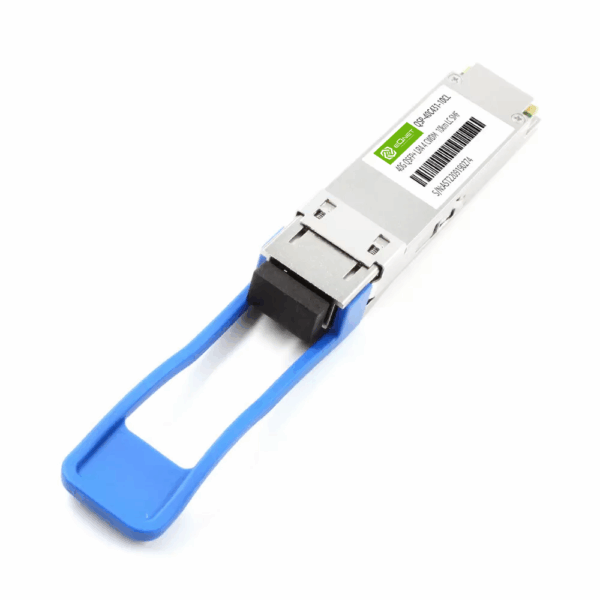

40G QSFP+
EQNET’s 40G QSFP+ (Quad Small Form-Factor Pluggable Plus) provides high-density 40G connectivity options for high-performance computing networks and large data centers. We provide a full range of 40G QSFP+ optical transceivers, including SR4, SR BIDI, SWDM4, IR4,  LR4, LX4, PSM IR4, PSM LR4, ER4, ZR4. They adopt optical cables with LC or MPO connectors. They are compliant with 40G QSFP+ MSA and IEEE802.3bm, SFF-8436. It has the characteristics of low power consumption, small volume, and high speed, which is beneficial for increasing the capacity of data centers, improving port density, and reducing power consumption.
| Form Factor | 40G QSFP+ |
|---|---|
| Data Rate | 40G/ps |
| Distance | 100M, 10KM, 150M/2KM, 20km, 2KM, 300M, 40KM, 60KM, 80KM |
| Wavelength | 1310nm, 850/880/910/940nm, 850/910nm, 850nm, CWDM4, DWDM CHxx, LWDM4 |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC, MTP/MPO |
| Voltage | 3.3V |
| Cable Type | MMF, MMF/SMF, SMF |
| DDM | Yes |
| Transmitter Type | 4 Lanes CWDM DFB, 4 Lanes DFB, CWDM DFB, DFB, VCSEL, VCSEL 850nm |
| Receiver Type | PIN |
| TX Power | -3.7~+4.5dBm, -4.0~+5.0dBm, -5~1dBm, -7.0~+2.3dBm, -7.5~+3.0dBm, -7~2.3dBm, -8~1.0dBm, +3.0~+7.0dBm, +4.0~+7.0dBm, N/A |
| Receiver Sensitivity | < -10.5dBm, < -12.6dBm, < -13dBm, < -14.0dBm, < -14dBm, < -22dBm, < -23.0dBm, < -26.0dBm, < -6.0dBm |
| Protocols | MSA Compliant |
| Warranty | 3 years |
