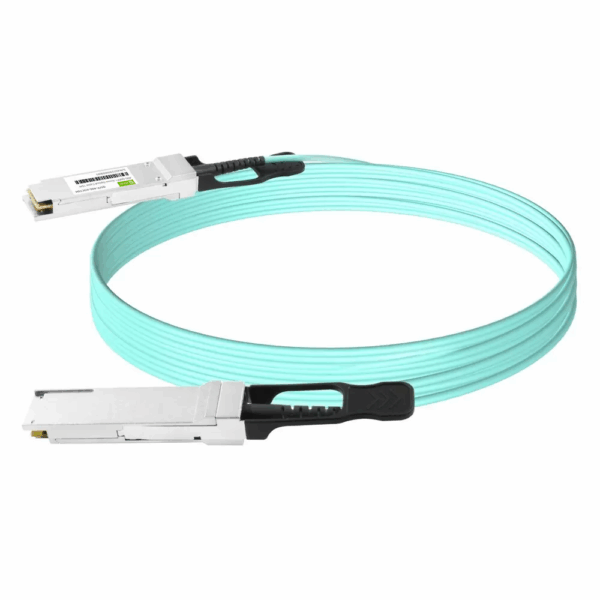

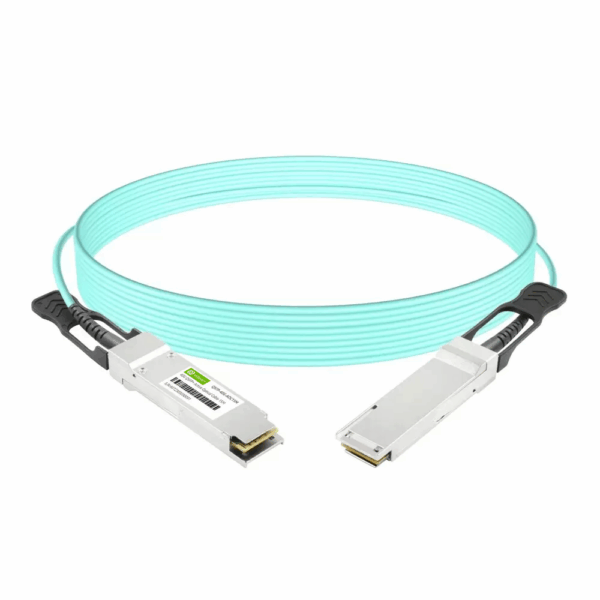

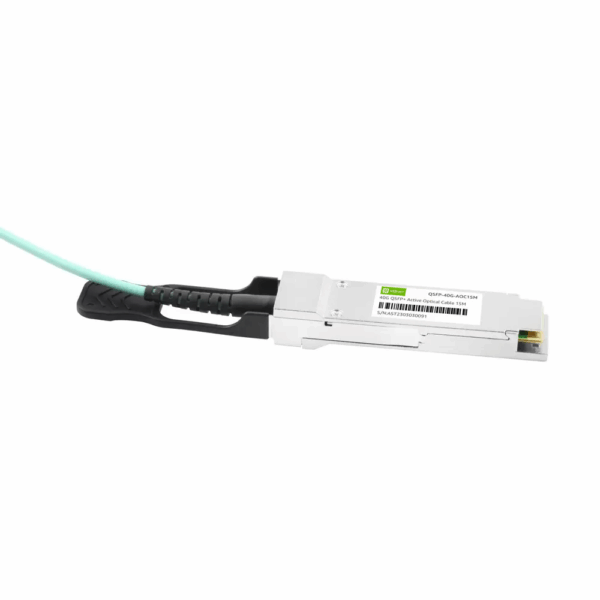

40G QSFP+ AOC
40G QSFP+ AOC (Active Optical Cable) cables are compliant with 40G QSFP+ MSA, they are designed to support 40G Ethernet and InfiniBand SDR/DDR/QDR. The 40G QSFP+ AOC integrated 4x10Gb/s data in one single OM3/OM4 cable with smart optics design. Compared to the connection between 2 QSFP+ transceivers and MPO/MPT cables. The 40G QSFP+ AOC uses COB technology and assembled with 40G optical engine for lower cost and power consumption. It is an ideal optical interconnect solution for large data centers, cloud computing and other applications that require large amounts of high-speed data transmission.
EQNET could offer high performance 40G QSFP+ AOC in lengths ranging from 1 meter to 100 meters.
| Cable Type | AOC |
|---|---|
| Connector Type | QSFP+ to QSFP+ |
| Data Rate | 40G/ps |
| Length | 100m, 10m, 15m, 1m, 20m, 3m, 50m, 5m, 7m, xxm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | OFNP |
| Voltage | 3.3V |
| Passive/Active | Active |
| Minimum Bend Radius | 7.5mm |
| Protocols | Â 10/40 Gigabit Ethernet, 40G InfiniBand 8x DDR, 4x QDR, Fibre Channel |
| Fiber Cable | OM3 |
