40G QSFP+ Breakout DAC

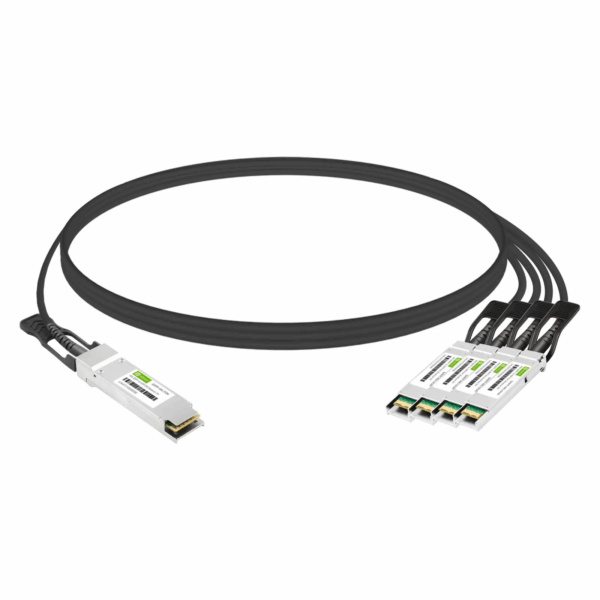

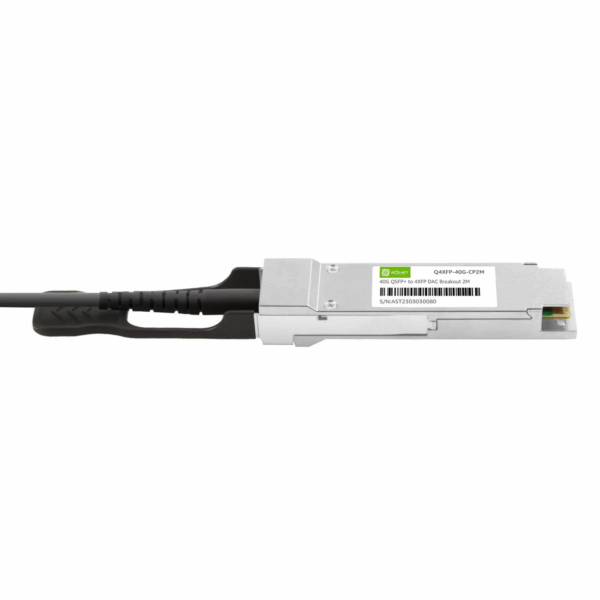

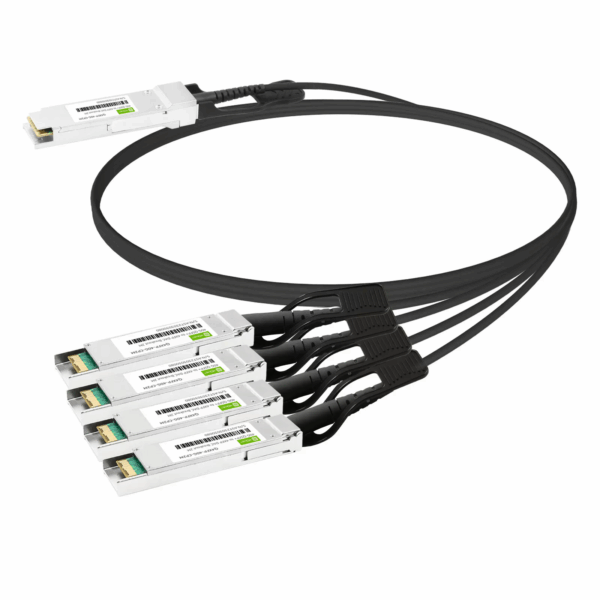

40G QSFP+ Breakout DAC cable is built one end with 40G QSFP+ module and the other end breakout with four 10G SFP+ modules or four 10G XFP modules. It provides a cost effective way of connect 40 GbE QSFP+ ports to 4 x 10 GbE SFP+/XFP ports between servers, storage and other equipment over short distances. These DAC breakout cables support 40G Ethernet (40GBASE-CR4) and 10GBASE-CR4. They are fully compliant with the 40G QSFP+ MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 specifications. 40G QSFP+ DAC breakout cables enable network professionals to achieve a high-end port density at lower cost and lower power consumption. EQNET could provide 40G QSFP+ to 4x 10G SFP+ breakout passive cables (0.5 meter to 7 meters) and active cables (1 meter to 10 meters), we can also supply passive 40G QSFP+ breakout to 4x 10G XFP cables in length range from 0.5 meter to 2 meters.
| Cable Type | DAC |
|---|---|
| Connector Type | QSFP+ to SFP+, QSFP+ to XFP |
| Data Rate | 40G/ps |
| Length | 0.5m, 1.5m, 10m, 1m, 2.5m, 2m, 3m, 4m, 5m, 7m |
| AWG | 26, 28, 30 |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) |
| Voltage | 3.3V |
| Passive/Active | Active, Passive |
| Minimum Bend Radius | 20mm, 30mm, 40mm, 7.5mm |
| Protocols | 10/40 Gigabit Ethernet, 40G InfiniBand 8x DDR, 4x QDR, Fibre Channel |
