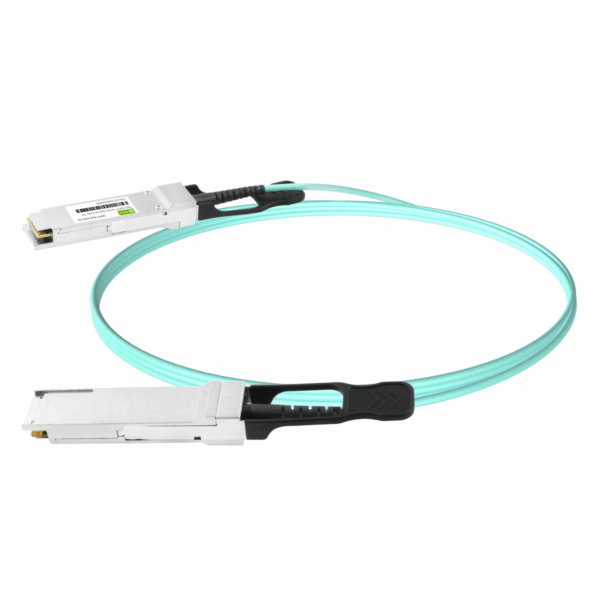

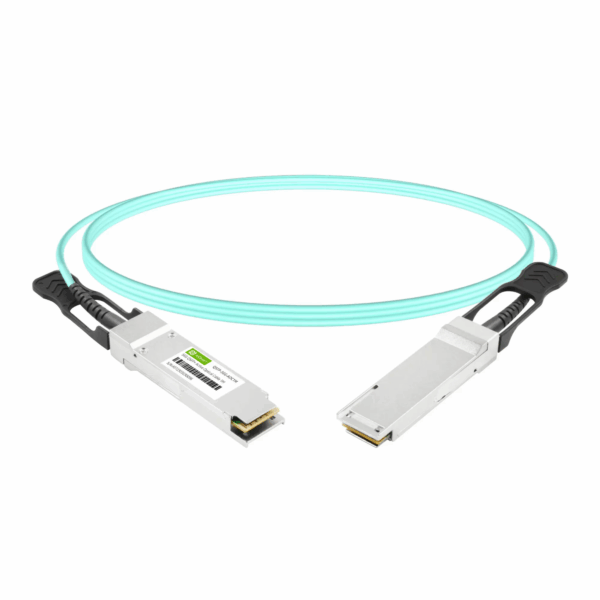

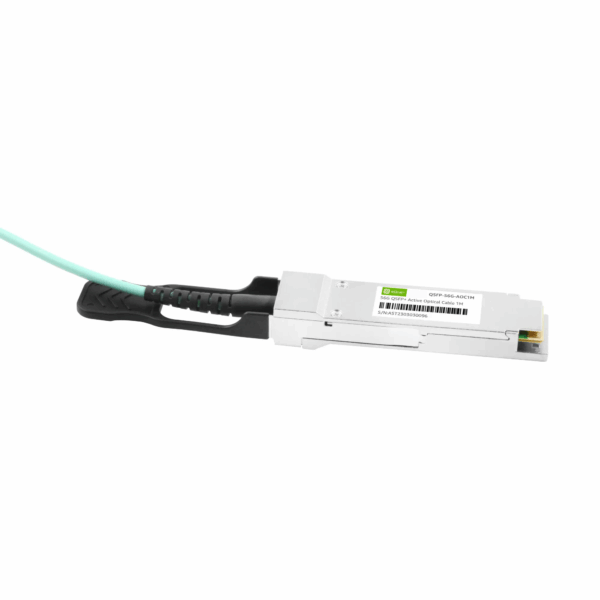

56G QSFP+ AOC
The 56G QSFP+ AOC (Active Optical Cable) is a 56Gb/s (4x14Gb/s) data direct connection solution to 4x FDR InfiniBand and 4x16G Fibre Channel (FC). It is compliant with QSFP+ MSA, and widely used in data centers, storage area network (SAN) and high-performance computing (HPC) applications. The integrated cable transmits 4x14Gb/s data in each lane over a OM3/OM4 multi-mode fiber. The 56G QSFP+ AOC adopts 4-channel 850nm VCSEL array and PIN photo-detector array with COB technology. With lower cost and lower power consumption, the 56G QSFP+ AOC is an ideal alternative option to 56G QSFP+ direct attach copper cables (DAC) and SFP28 optical transceiver connections of short reach. AscentOptics provide high performance 56G QSFP+ AOC in lengths ranging from 1 meter to 100 meters.
The 56G QSFP+ AOC (Active Optical Cable) is a 56Gb/s (4x14Gb/s) data direct connection solution to 4x FDR InfiniBand and 4x16G Fibre Channel (FC). It is compliant with QSFP+ MSA, and widely used in data centers, storage area network (SAN) and high-performance computing (HPC) applications. The integrated cable transmits 4x14Gb/s data in each lane over a OM3/OM4 multi-mode fiber. The 56G QSFP+ AOC adopts 4-channel 850nm VCSEL array and PIN photo-detector array with COB technology. With lower cost and lower power consumption, the 56G QSFP+ AOC is an ideal alternative option to 56G QSFP+ direct attach copper cables (DAC) and SFP28 optical transceiver connections of short reach. AscentOptics provide high performance 56G QSFP+ AOC in lengths ranging from 1 meter to 100 meters.
| Cable Type | AOC |
|---|---|
| Connector Type | QSFP+ to QSFP+ |
| Data Rate | 56G/ps |
| Length | 1m, xxm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) |
| Voltage | 3.3V |
| Passive/Active | Active |
| Minimum Bend Radius | 7.5mm |
| Protocols | 4x FDR, 56G InfiniBand, Fibre Channel |
| Fiber Cable | OM3 |
