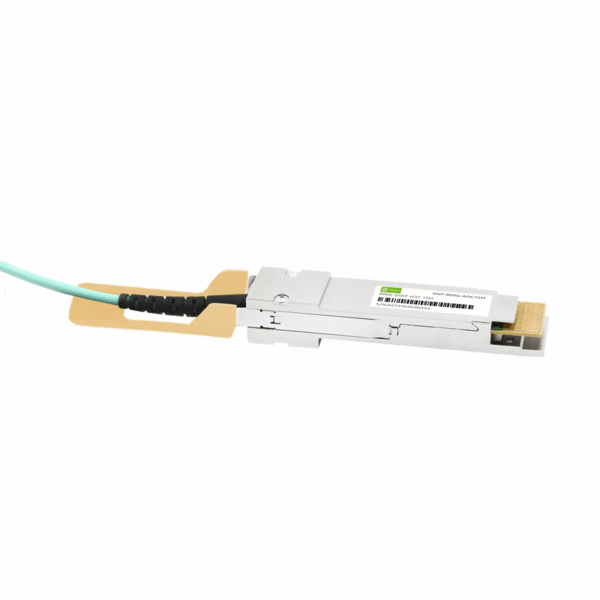

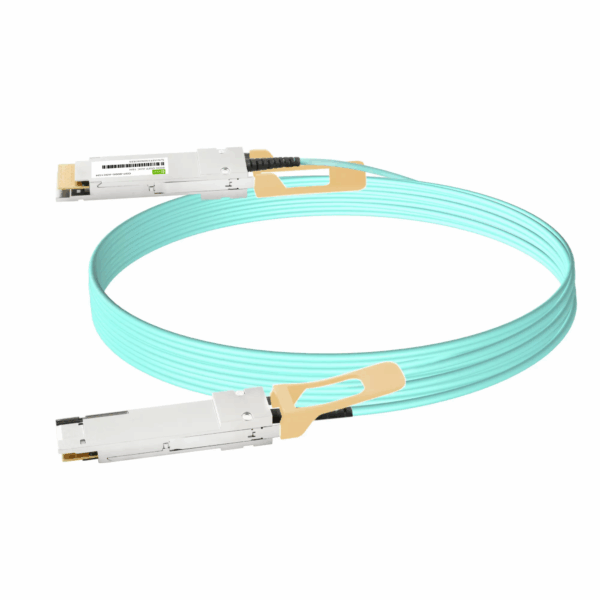

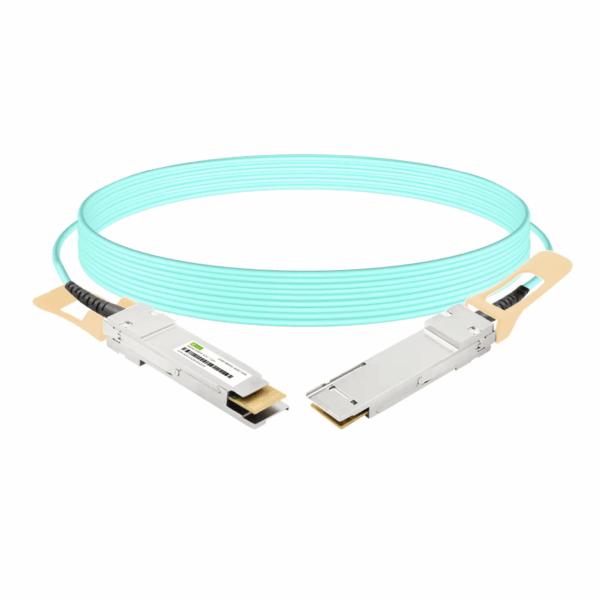

800G OSFP AOC
The 800G OSFP AOC (active optical cable)is an 800 Gb/s parallel active optical cable, which transmits parallel 8×100 Gb/s PAM4 signals over multi-mode fiber (MMF) cables up to 30m.
It is compliant with OSFP800 MSA, IEE802.3ck standards, and support CMIS4.0 The module supports eight electrical interface lanes which operate in 106.25G/s,with an overall aggregate bandwidth up to 850Gb/s. These modules are designed to operate over multi-mode fiber systems using a nominal wavelength of 850nm. EQNET’s provide high performance, high density and low power 800G OSFP active optical cables (AOC), which is suitable for short-range interconnection in data center, high- performance computing networks and cloud networks.
| Cable Type | AOC |
|---|---|
| Connector Type | OSFP to OSFP |
| Data Rate | 800G/ps |
| Length | 10m, 15m, 1m, 20m, 3m, 5m, 7m, xxm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | OFNP |
| Voltage | 3.3V |
| Passive/Active | Active |
| Minimum Bend Radius | 7.5mm |
| Protocols | IEEE 802.3ck, OSFP MSA |
| Fiber Cable | OM3 |
