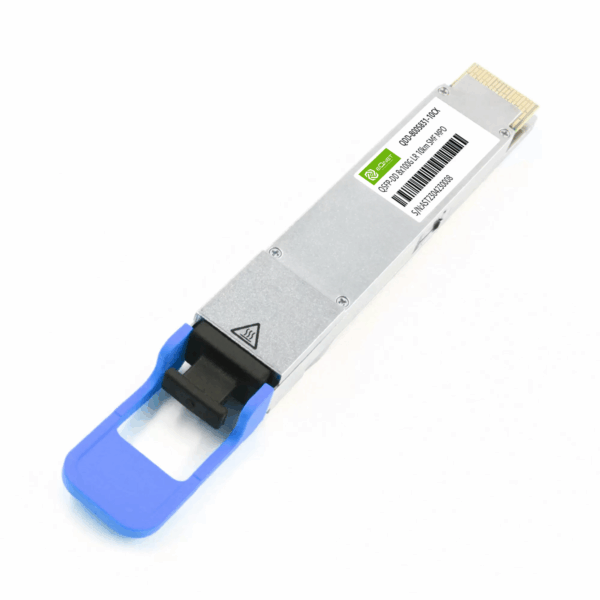

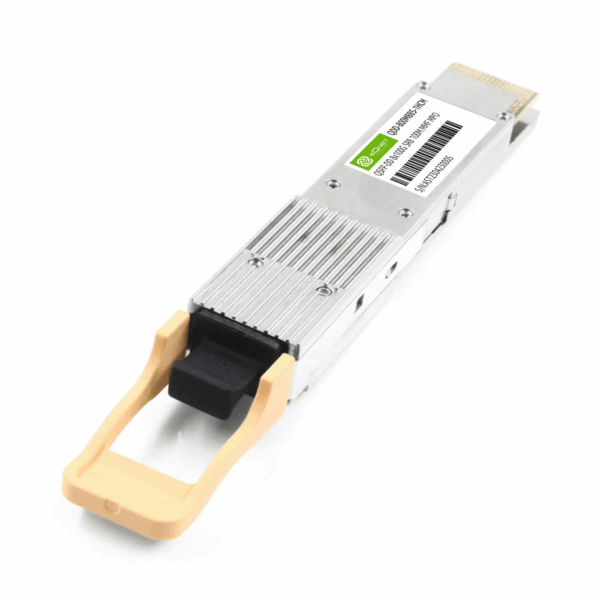

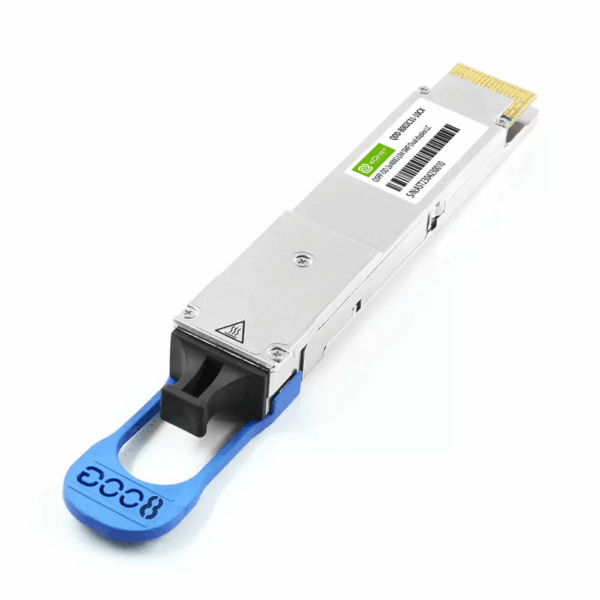

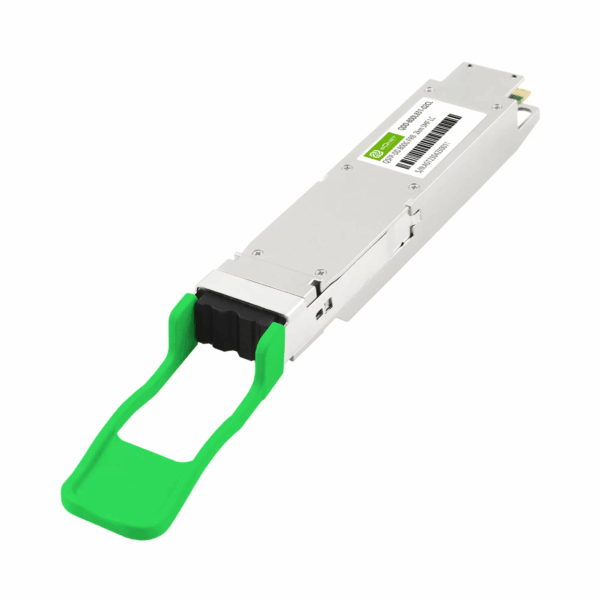

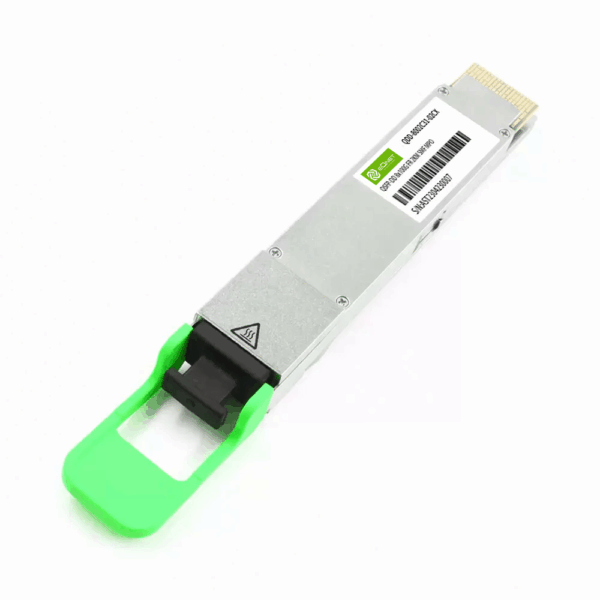

800G QSFP112-DD
EQNET’s 800G QSFP-DD optical transceiver module includes two architecture solutions, 4x100Gx2 and 8X100G. In addition to the traditional EML design, it also adopts silicon-based solutions to meet short-distance transmission needs. The products of this series comply with IEE802.3ck and QSFP-DD 800 MSA standards and support CMIS4.0. Products are mainly used in 800G Ethernet, data centers, and Cloud networks.
| Form Factor | QSFP-DD |
|---|---|
| Data Rate | 2x400GbE, 800GbE, 8x100G 800GbE |
| Distance | 100M, 10KM, 2KM, 500M |
| Wavelength | 1310nm, 850nm, CWDM4, WDM |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Dual CS, Dual LC Duplex, Dual MTP/MPO-12, Duplex LC, MTP/MPO-16 |
| Voltage | 3.3V |
| Cable Type | MMF, SMF |
| DDM | No, Yes |
| Transmitter Type | EML |
| Receiver Type | PIN |
| TX Power | -1.9~4.8dBm, -2.7~5.1dBm, -2.7dBm~5.1dBm, -2.9~4.0dBm, -3.1~+4.0dBm, -3.1~4dBm, -3.2~4.4dBm, .-4.5~3.0dBm |
| Receiver Sensitivity | <-7.1dBm, <-7.2dBm, <-8.2dBm, <-9dBm, ＜-12dBm, ＜-5.9dBm, ＜-8.2dBm, ＜-9dBm |
| Protocols | QSFP-DD MSA |
| Warranty | 3 years |
