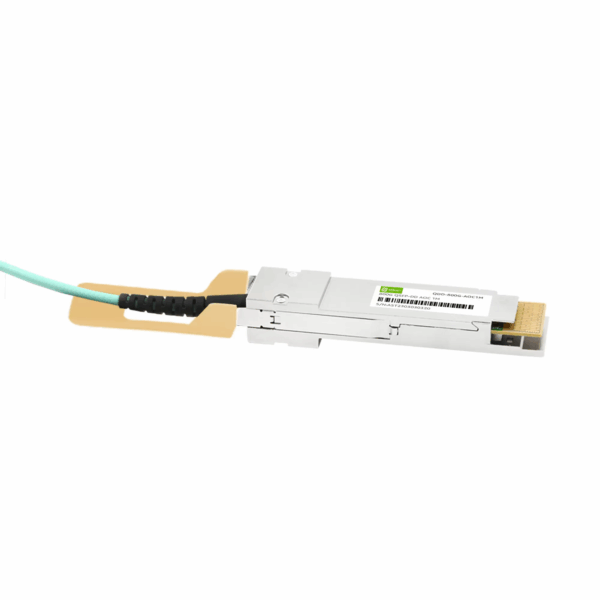

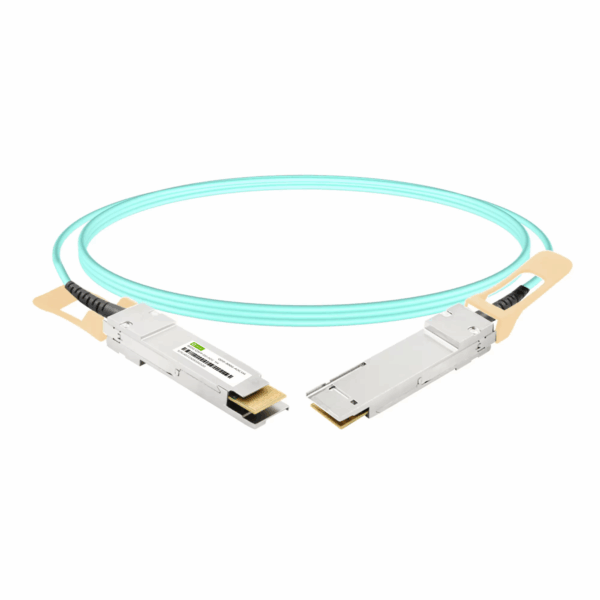

800G QSFP112-DD AOC
The 800G QSFP-DD AOC (active optical cable) is a 800 Gb/s parallel active optical cable, which transmits parallel 8×100 Gb/s PAM4 signals over multi-mode fiber (MMF) cables up to 30m.It is compliant with QSFP112-DD MSA. The 800G QSFP-DD AOC cables supports eight electrical interface lanes, each of which operate in the data rate of 106.25G/s, with an overall aggregate bandwidth up to 850Gb/s. These modules of cables are designed to operate over multi-mode fiber systems using a nominal wavelength of 850nm. EQNET’s provide high performance, high density and low power 800G QSFP-DD active optical cables (AOC), which is suitable for short-range interconnection in data center, high- performance computing networks, enterprise core and distribution layers, and service provider applications.
| Cable Type | AOC |
|---|---|
| Connector Type | QSFP-DD to QSFP-DD |
| Data Rate | 800G/ps |
| Length | 10m, 15m, 1m, 20m, 3m, 5m, 7m, xxm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | OFNP |
| Voltage | 3.3V |
| Passive/Active | Active |
| Minimum Bend Radius | 7.5mm |
| Protocols | IEEE 802.3ck, QSFP-DD MSA |
| Fiber Cable | OM3 |
