CWDM MUX DEMUX

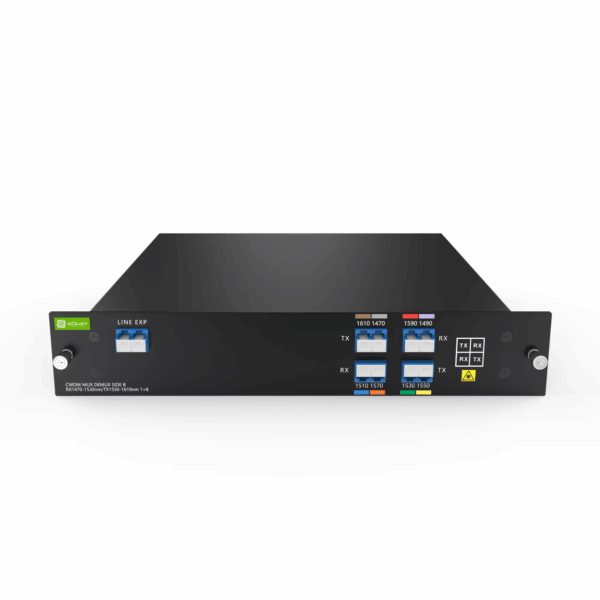

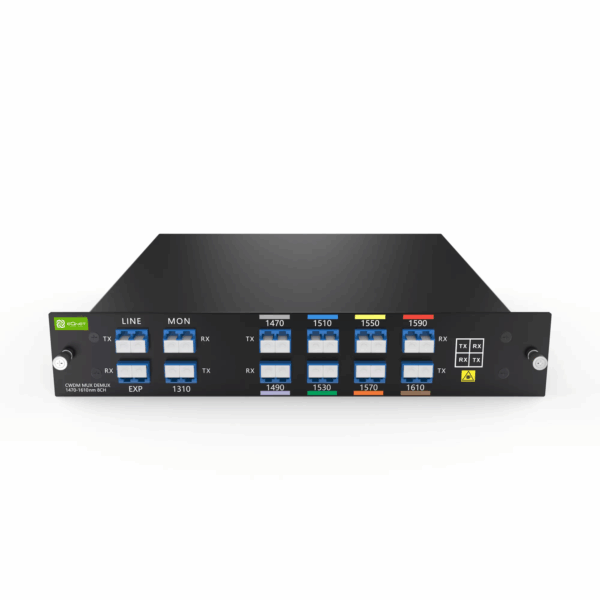

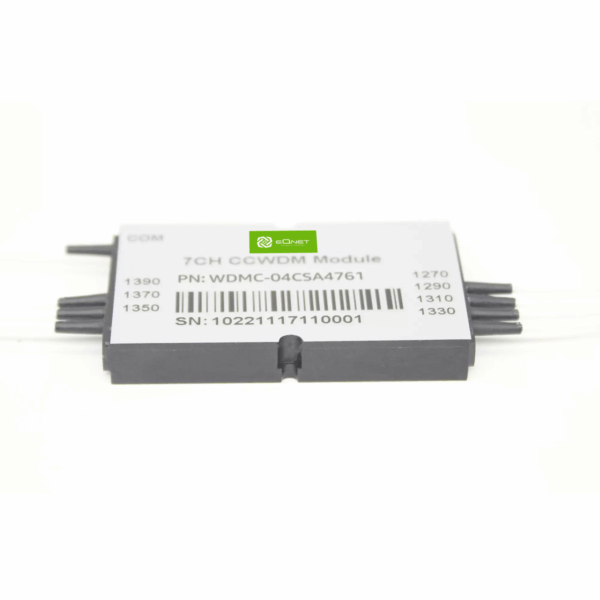

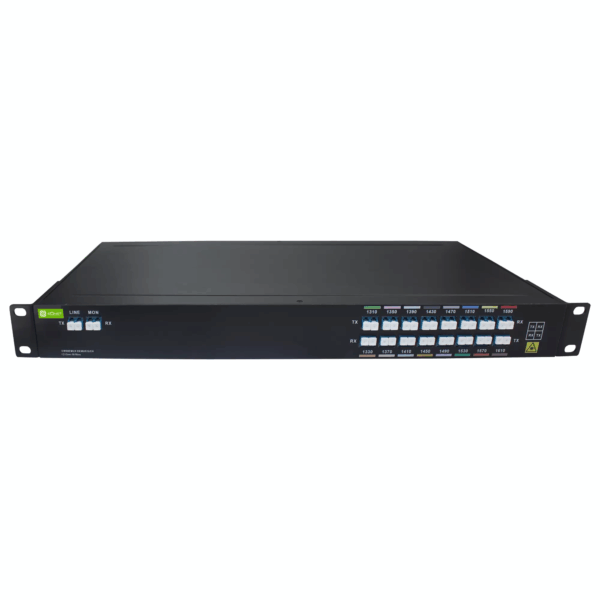

Coarse Wave Division Multiplexing (CWDM) is a technology that multiplexes multiple optical signals onto a single fiber by using different wavelengths of light. CWDM Multiplexer/Demultiplexer (MUX/DEMUX) modules support ITU-T G. 694.2 wavelengths between 1270nm to 1610nm in 20nm increments.The CWDM MUX/DEMUX can maximize capacity and increase bandwidth over a single or dual fiber cable. EQNET CWDM MUX/DEMUX modules support dual fiber 4 channel, 8 channel and 16 channel, single fiber 4 channel and 8 channel are packaged in LGX boxes, 1U rack or very small sized aluminium Box.
| Product Type | CWDM MUX DEMUX |
|---|---|
| Package | 1 U Rack, Alumminum Box, LGX Box |
| Channel | 16Ch CWDM, 18Ch CWDM, 4Ch CWDM, 8Ch CWDM |
| Single /Dual Fiber | Dual Fiber, Single Fiber |
| Connector | LC/UPC |
| Operating Wavelength | 16 Channels 1270-1610nm, 16 Channels 1310-1610nm, 18 Channels 1270-1610nm, 4 Channels 1270-1610nm, 4 Channels 1470-1530nm, 4 Channels 1470-1610nm, 8 Channels 1310-1610nm, 8 Channels 1470-1610nm |
| Channel Spacing | 20 nm |
| Channel Passband | ± 6.5nm |
| Insertion Loss | ≤ 1.4dB, ≤ 1.5dB, ≤ 2.4dB, ≤ 4.8dB, ≤3.6dB, 1.0dB Typical, 2.0dB Typical, 2.5dB Typical, 4.0dB Typical |
| Return Loss | ≥ 45dB |
| Directivity | ≥ 45dB, ≥ 50dB |
| Polarization Dependent Loss | ≤ 0.3dB, ≤0.2dB |
| Polarization Mode Dispersion | ≤0.1ps, ≤0.2ps |
| Channel Isolation | Adjacent ≥ 30dB Non-adjacent ≥ 40dB, Adjacent ≥ 30dBNon-adjacent ≥ 40dB |
| Monitor Port | NO, Optional, YES |
| Power Handling | ≤ 500mW |
| Fiber Type | SMF-28e or Customer Specified |
| Operation Temperature | -20°C～+70°C, -5°C～+70°C |
| Storage Temperature | -40 to 85°C |
