DWDM OADM

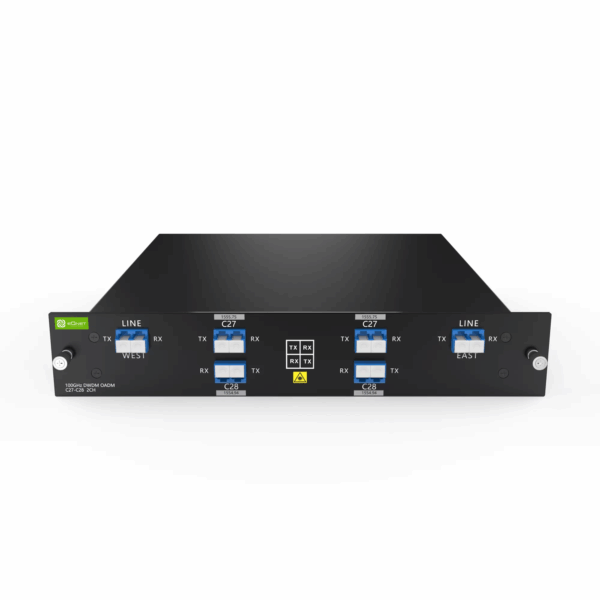

DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one or more 100 GHz DWDM channels in the C-band into one or two fibers, while allowing the rest of the wavelengths bypass to the desired destination. DWDM OADM modules are available in single-sided (east or west) and dual-sided (east and west) configurations up to 2 channels. EQNET provide high performance DWDM OADM modules, including dual fiber 2 channels and single fiber 1 channel, packaged in LGX box.
| Part No. | OADL-01DS, OADL-02DD |
|---|---|
| Product Type | DWDM OADM |
| Package | LGX Box |
| Channel | 1Ch DWDM, 2Ch DWDM |
| Single /Dual Fiber | Dual Fiber, Single Fiber |
| Connector | LC/UPC |
| Operating Wavelength | 1 Channels C21-C60, 2 Channels C21-C60 |
| Channel Spacing | 100GHz |
| Channel Passband | ± 0.11nm |
| Insertion Loss | ≤ 1.0dB |
| Return Loss | ≥ 45dB |
| Directivity | ≥ 50dB |
| Polarization Dependent Loss | ≤0.2dB |
| Polarization Mode Dispersion | ≤0.2ps |
| Channel Isolation | Adjacent ≥ 30dBNon-adjacent ≥ 40dB |
| Power Handling | ≤ 500mW |
| Operation Temperature | -20°C～+70°C |
| Storage Temperature | -40 to 85°C |
| Transmission Direction | West and/or East |
| Line Type | Dual Fiber, Single Fiber |
