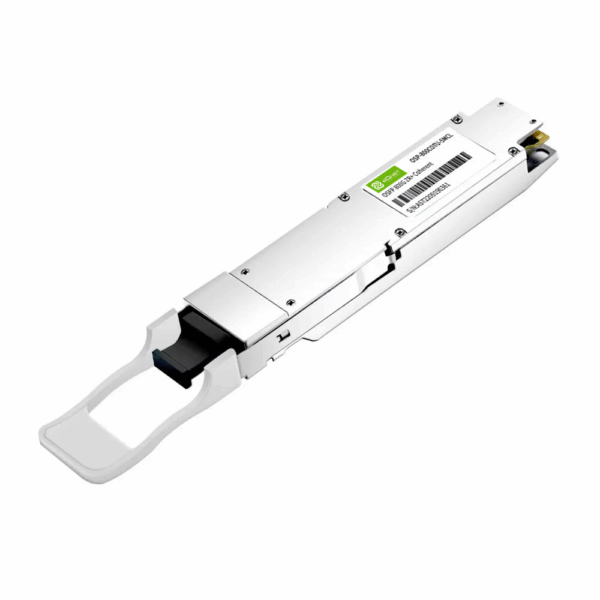

OSFP DCO
OSFP DCO products are based on different modulation techniques that use two polarizations of light to encode data. They can work with a wide range of wavelengths in the C-band and have advanced features for detecting and correcting signal distortions. They come in a standard OSFP shape that can plug into different devices and use a 7nm DSP chip. They can support data rates of 100 or 400 Gbps and are suitable for various network applications, such as metro, access, and Cloud/DCI.
| Form Factor | OSFP |
|---|---|
| Data Rate | 400G, 800G |
| Distance | 120KM, 480KM, 80-120KM |
| Wavelength | Coherent |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC |
| Voltage | 3.3V |
| Cable Type | SMF |
| DDM | Yes |
| Transmitter Type | Tunable Coherent Laser |
| Receiver Type | PIN |
| TX Power | .-10~-6.0dBm |
| Receiver Sensitivity | < -20dBm |
| Protocols | OSFP MSA |
| Warranty | 3 years |
